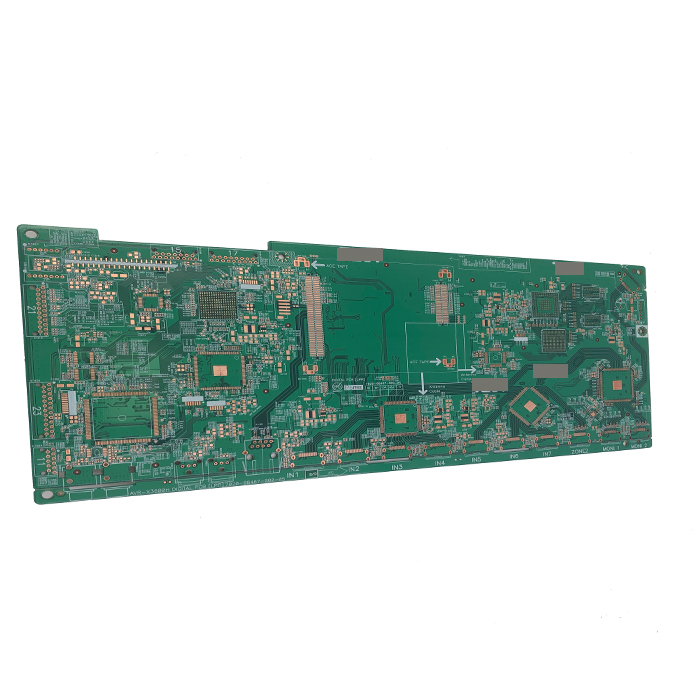

2 Layers PCB
|
To protect trade secrets, product parameters are not consistent! Please consult |
| MaterialType | FR4 TG135 |
| Layers | 2 layers |
| Thickness | 1.6mm |
| Copper | 70um |
| Solermask | Green solermask |
| Silkscreen | White silkscreen |
| Surfacefinish | osp |
| The actual manufacturing capacity of our plant | |||
| Max Layers | 40Layers | Max Fabrication Size | 1250*570mm |
| Max Thickness | 8.0mm | min hole diameter | 0.15/0.35mm |
| Min Thickness | 0.4mm | Drilling accuracy | +/-0.025mm |
| Max Copper Thickness | 10oZ | PTH Bore Tolerance | +/-0.03mm |
| Surfacefinish | ENIG/ OSP/ HASL/ Au Plating (soft/hard)/ Immersion Ag/ Immersion Tin/ Bright Tin Plating/Ag Plating/ Carbon Ink | ||
